Single Vane Pumps

Model No.	Max. Pressure		Max. Displacement		Max. Speed RPM	Mounting Standard
Model No.	psi	bar	in³ / rev	cm³ / rev	Max. Speed RPM	Mounting Standard
VTXB	3000	210	0.40 - 2.80	6 - 46	2500	SAE - A
VT6B	3500	240	0.40 - 2.42	6 - 40	2500	SAE - A
VT6C	4000	275	0.66 - 6.10	11 - 100	2800	SAE - B
VT6CSH	4000	275	0.66 - 6.10	11 - 100	2800	SAE - B
VT6D	3500	240	2.90 - 11.62	48 - 190	2500	SAE - C
VT6E	3500	240	8.07 - 16.40	132 - 270	2200	SAE - C
VT6CM	4000	275	0.66 - 6.10	11 - 100	2800	SAE - B
VT6GC	4000	275	0.66 - 6.10	11 - 100	2800	R - 17 - 102
VT6CP	4000	275	0.66 - 6.10	11 - 100	2800	SAE - C
VT6DM	3500	240	2.90 - 11.62	48 - 190	2500	SAE - C
VT6EM	3500	240	8.07 - 16.40	132 - 270	2200	SAE - C
VT7B/BS	4650	320	0.35 - 3.05	6.0 - 50	3600	SAE - B
VT7QC1/QC2	4350	300	0.66 - 6.10	11 - 100	3000	SAE - B
VT7D/DS	4350	300	2.68 - 9.64	44 - 158	3000	SAE - C
VT7DSW	4350	300	2.68 - 9.64	44 - 158	3000	SAE - C
VT7E/ES	3500	240	8.07 - 16.40	132 - 270	2200	SAE - C

^*Click on model name for detailed information

Model No.	VTXBB
Max. Pressure (psi)	3000
Max. Pressure (bar)	210
Max. Displacement (in³/rev)	0.79 - 5.61
Max. Displacement (cm³/rev)	12 - 92
Maximum Speed RPM	2500
Mounting Standard	SAE - A / B

Download Catalogue

Service Manual

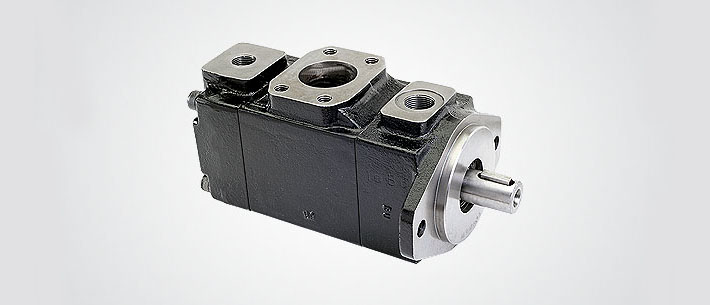

Model No.	VT6BB
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	0.79 - 5.61
Max. Displacement (cm³/rev)	12 - 92
Maximum Speed RPM	2500
Mounting Standard	SAE - B

Download Catalogue

Service Manual

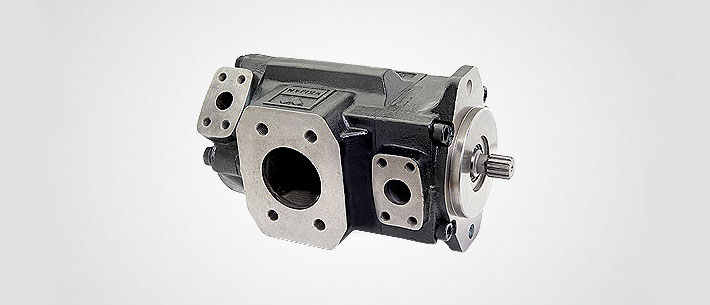

Model No.	VT6CB
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	1.05 - 8.52
Max. Displacement (cm³/rev)	17 - 140
Maximum Speed RPM	2500
Mounting Standard	SAE - B

Download Catalogue

Service Manual

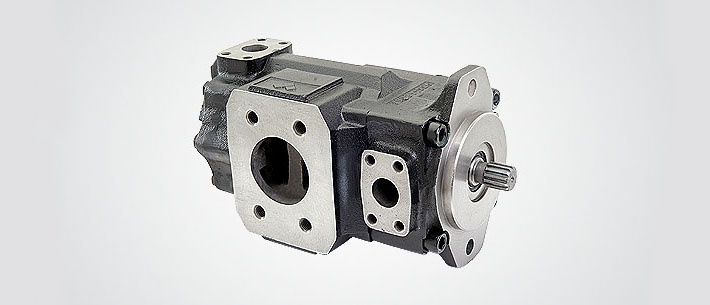

Model No.	VT6CC
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	1.32 - 12.20
Max. Displacement (cm³/rev)	22.0 - 200
Maximum Speed RPM	2800
Mounting Standard	SAE - B

Download Catalogue

Service Manual

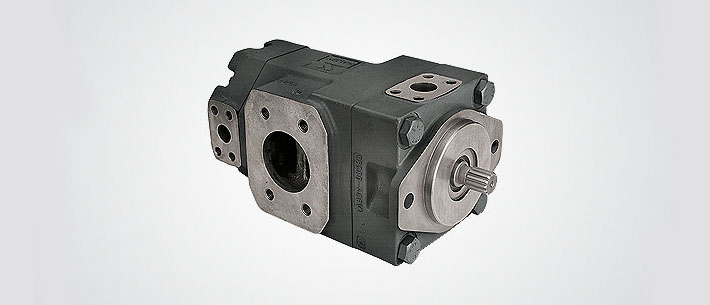

Model No.	VT6CCSH
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	1.32 - 12.20
Max. Displacement (cm³/rev)	22.0 - 200
Maximum Speed RPM	2800
Mounting Standard	SAE - B

Download Catalogue

Service Manual

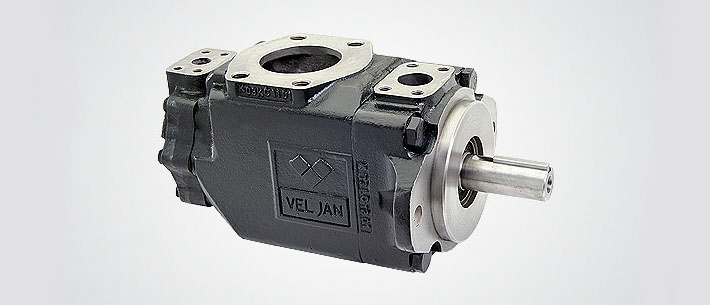

Model No.	VT6DC
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	3.56 - 17.75
Max. Displacement (cm³/rev)	59.0 - 290
Maximum Speed RPM	2500
Mounting Standard	SAE - C

Download Catalogue

Service Manual

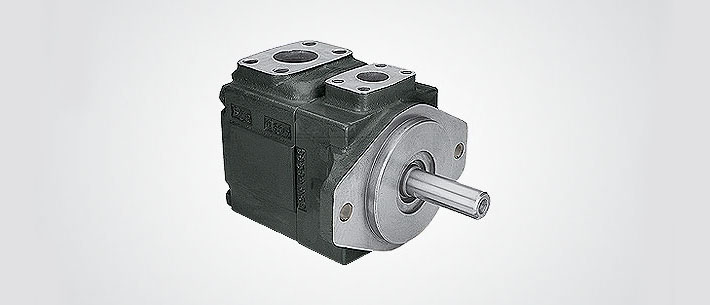

Model No.	VT6CM
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	0.66 - 6.10
Max. Displacement (cm³/rev)	11 - 100
Maximum Speed RPM	2800
Mounting Standard	SAE - B

Download Catalogue

Service Manual

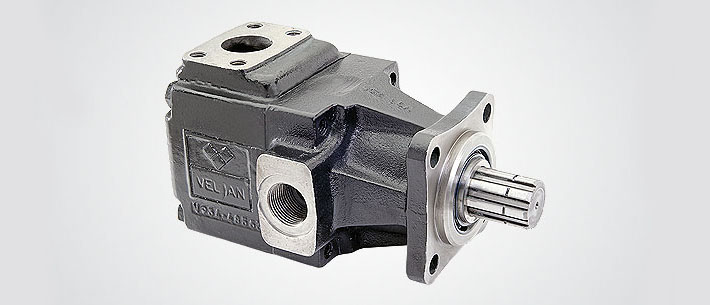

Model No.	VT6GC
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	0.66 - 6.10
Max. Displacement (cm³/rev)	11 - 100
Maximum Speed RPM	2800
Mounting Standard	R - 17 - 102

Download Catalogue

Service Manual

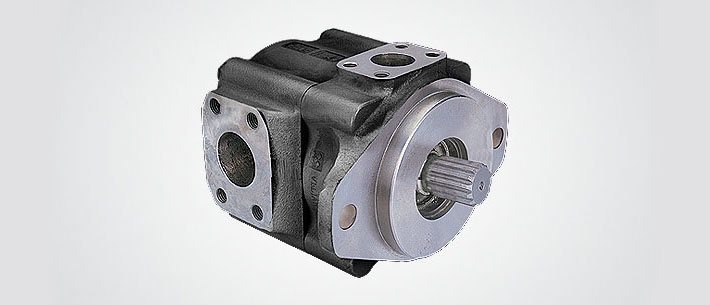

Model No.	VT6CP
Max. Pressure (psi)	4000
Max. Pressure (bar)	275
Max. Displacement (in³/rev)	0.66 - 6.10
Max. Displacement (cm³/rev)	11 - 100
Maximum Speed RPM	2800
Mounting Standard	SAE - C

Download Catalogue

Service Manual

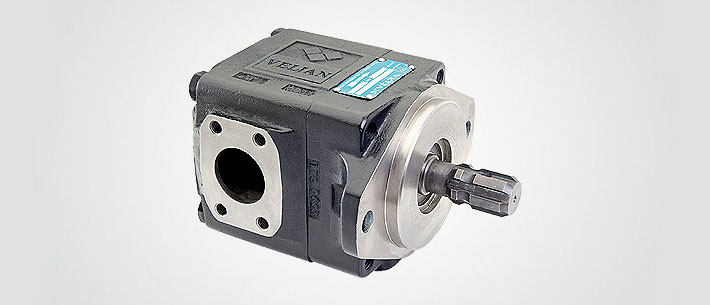

Model No.	VT6DM
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	2.90 - 11.62
Max. Displacement (cm³/rev)	48 - 190
Maximum Speed RPM	2500
Mounting Standard	SAE - C

Download Catalogue

Service Manual

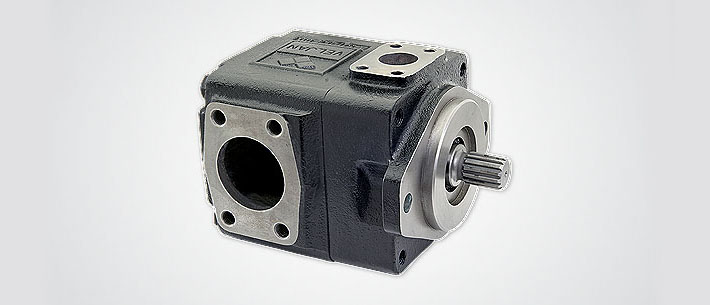

Model No.	VT6EM
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	8.07 - 16.40
Max. Displacement (cm³/rev)	132 - 270
Maximum Speed RPM	2200
Mounting Standard	SAE - C

Download Catalogue

Service Manual

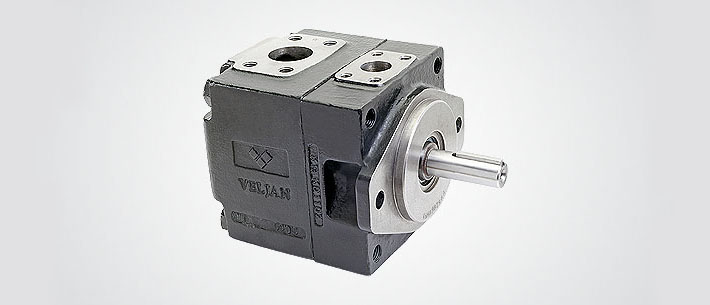

Model No.	VT7B/BS
Max. Pressure (psi)	4650
Max. Pressure (bar)	320
Max. Displacement (in³/rev)	0.35 - 3.05
Max. Displacement (cm³/rev)	6.0 - 50
Maximum Speed RPM	3600
Mounting Standard	SAE - B

Download Catalogue

Service Manual

Model No.	VT7QC1/QC2
Max. Pressure (psi)	4350
Max. Pressure (bar)	300
Max. Displacement (in³/rev)	0.66 - 6.10
Max. Displacement (cm³/rev)	11 - 100
Maximum Speed RPM	3000
Mounting Standard	SAE - B

Download Catalogue

Service Manual

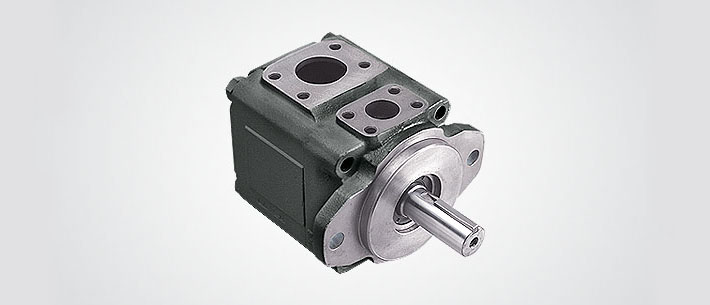

Model No.	VT7D/DS
Max. Pressure (psi)	4350
Max. Pressure (bar)	300
Max. Displacement (in³/rev)	2.68 - 9.64
Max. Displacement (cm³/rev)	44 - 158
Maximum Speed RPM	3000
Mounting Standard	SAE - C

Download Catalogue

Service Manual

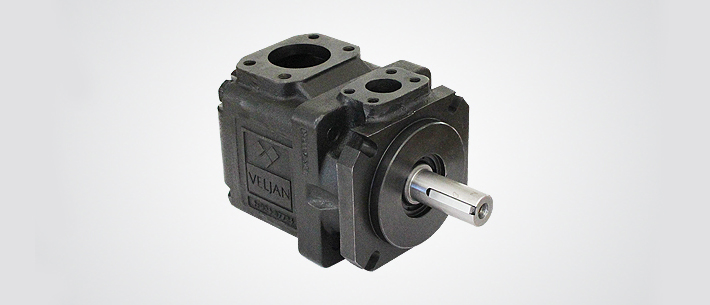

Model No.	VT7DSW
Max. Pressure (psi)	4350
Max. Pressure (bar)	300
Max. Displacement (in³/rev)	2.68 - 9.64
Max. Displacement (cm³/rev)	44 - 158
Maximum Speed RPM	3000
Mounting Standard	SAE - C

Download Catalogue

Service Manual

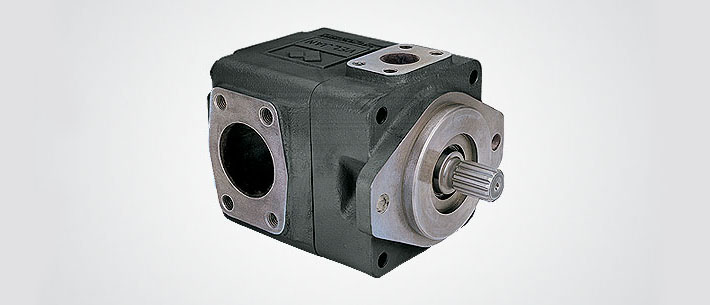

Model No.	VT7E/ES
Max. Pressure (psi)	3500
Max. Pressure (bar)	240
Max. Displacement (in³/rev)	8.07 - 16.40
Max. Displacement (cm³/rev)	132 - 270
Maximum Speed RPM	2200
Mounting Standard	SAE - C

Download Catalogue

Service Manual
